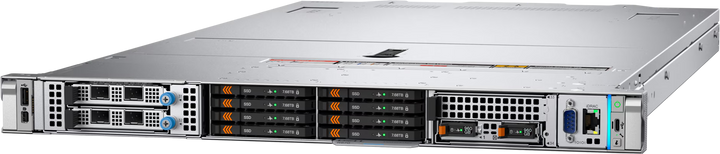

Dell PowerEdge R670 1U Rack Server
Warranty: 1-Year Standard Warranty
Delivery: Worldwide shipping available.
Enquire now: sales@giantsystemtek.com
The Dell PowerEdge R670 is a 1U, two-socket PowerEdge R670 server enables high-performance computing for optimal power efficiency in your data center.
Dell PowerEdge R670 1U Rack Server Technical Specifications
Form Factor
1U rack server
Processor
Up to 2 Intel Xeon 6 Processor with up to 144 cores per processor
GPU options
Up to 2 x 75 W SW
Memory
32 DDR5 DIMM slots, supports RDIMM 2 TB max, speeds up to 6400 MT/s
Supports registered ECC DDR5 DIMMs only
Storage controllers
I Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS): HWRAID 1, 2 x M.2 NVMe SSDs or M.2 Interposer board (DCMHS): 2 x M.2 NVMe SSDs or USB
Internal controllers: Front PERC H965i
Front Bays
Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 122.4 TB
Up to 8 x 2.5 inch SAS/SATA/NVMe (SSD) max 245.6 TB
Power Supplies
1500 W Titanium 100—240 VAC or 240 VDC
1100 W Platinum 100—240 VAC or 240 VDC
800 W Platinum 100—240 VAC or 240 VDC
Cooling Options
Air cooling
Up to 4 sets (dual fan module) hot swappable fans
High performance Silver (HPR SLVR) or Standard (STD) fans
Dimensions
Height – 42.8 mm (1.69 inches)
Width – 482 mm (18.98 inches)
Weight – 20.42 kg (45.02 pounds)
