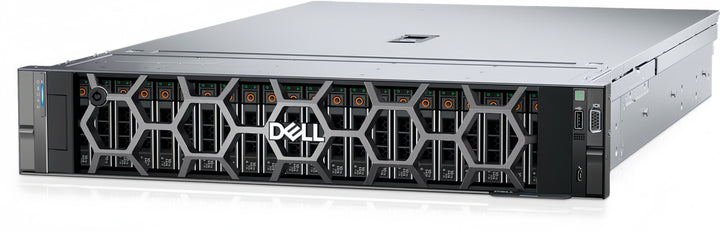

Dell PowerEdge R750 Server

Dell PowerEdge R750, powered by the 3rd Generation Intel Xeon Scalable processors is a rack server to address application performance and acceleration. The PowerEdge R750, is a dual-socket 2U rack server that delivers outstanding performance for the most demanding workloads. It supports 8 channels of memory per CPU, and up to 32 DDR4 DIMMs @ 3200 MT/s speeds.

Dell PowerEdge R750 Technical Specifications

Processor

Up to two 3rd Generation Intel Xeon Scalable processors, with up to 40 cores per processor

Memory

• 32 DDR4 DIMM slots, supports RDIMM 2 TB max or LRDIMM 8 TB max, speeds up to 3200 MT/s

• Up to 16 Intel Persistent Memory 200 series (BPS) slots, 8 TB max

• Supports registered ECC DDR4 DIMMs only

Storage controllers

• Internal controllers: PERC H745, HBA355I, S150, H345, H755, H755N

• Boot Optimized Storage Subsystem (BOSS-S2): HW RAID 2 x M.2 SSDs 240 GB or 480 GB

• Boot Optimized Storage Subsystem (BOSS-S1) HW RAID 2 x M.2 SSDs 240 GB or 480 GB

• External PERC (RAID): PERC H840, HBA355E

Drive Bays

Front bays:

• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB

• Up to 8 x 2.5-inch NVMe (SSD) max 122.88 TB

• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.84 TB

Rear bays:

• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

GPU Options

Up to two double-width 300 W, or three single-width 150 W, or six single-width 75 W accelerators

Network Options

1 x OCP 3.0 (x8 PCIe lanes)

Embedded NIC

2 x 1 GbE LOM

Power Supplies

• 700 W Titanium HLAC/240 mixed mode

• 800 W Platinum AC/240 mixed mode

• 1100 W Titanium AC/240 mixed mode

• 1100 W DC -48 - -60 V

• 1400 W Platinum AC/240 mixed mode

• 1800 W Titanium HLAC/240 mixed mode

• 2400 W Platinum AC/240 mixed mode

• 2800 W Titanium HLAC/240 mixed mode

Cooling Options

Air cooling, optional processor liquid cooling

Fans

• Standard fan/High performance SLVR fan/High performance GOLD fan

• Up to six hot plug fans

Ports

Front Ports

• 1 x Dedicated iDRAC Direct micro-USB

• 1 x USB 2.0

• 1 x VGA

Rear Ports

• 1 x USB 2.0

• 1 x Serial (optional)

• 1 x USB 3.0

• 2 x RJ-45

• 1 x VGA (optional for liquid cooling configuration)

Internal Ports

• 1 x USB 3.0
