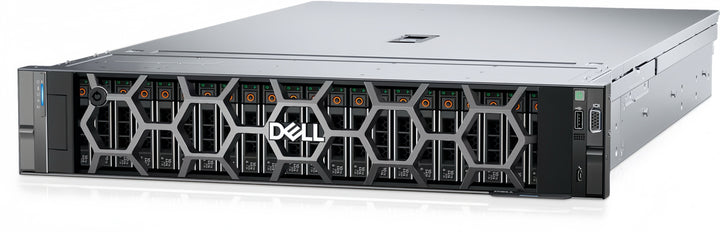

Dell PowerEdge R760 2U Rack Server

The new Dell PowerEdge R760 is a 2U, two-socket rack server. Gain the performance you need with this full-featured enterprise server, designed to optimize even the most demanding workloads like Artificial Intelligence and Machine Learning.

Dell PowerEdge R760 - Technical Specifications

Form Factor

       2U Rack Server

Processors

       Up to two 4th Generation Intel Xeon Scalable processors with up to 56 cores per processor

GPU Options

       Yes. 2 x double-wide(350W) or 6 x single-wide(75W) GPU

Memory

32 DDR5 DIMM slots.

Support RDIMM 8 TB max, speeds up to 4800 MT/s.

Support registered ECC DDR5 DIMMs only.

Drive

Front bays:

Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB

Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB

Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB

Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB

Rear bays:

Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB

Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB

Storage controllers

Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i

Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB

External HBA (non-RAID): HBA355e

Software RAID: S160

Cooling Options

Air cooling

Optional Direct Liquid Cooling

Standard (STD) fans/High-performance Silver (HPR) fans/ High performance Gold (VHP) fans

Up to 6 hot plug fans

Dimensions

Height – 86.8 mm (3.41 inches)

Width – 482 mm (18.97 inches)

Depth – 772.13 mm (30.39 inches) with bezel

758.29 mm (29.85 inches) without bezel
