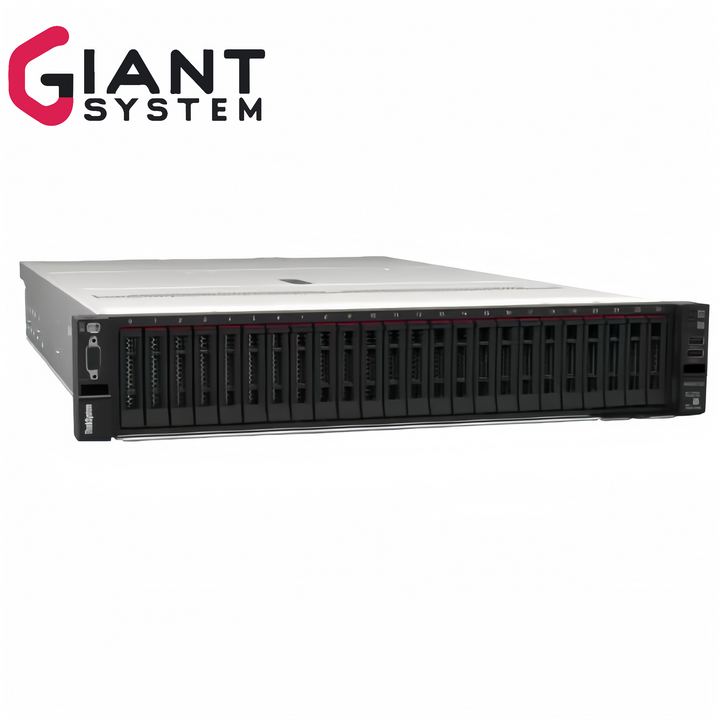

Lenovo ThinkSystem SR650 V2 Rack Server

ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth.

ThinkSystem SR650V2 Technical Specifications

Form Factor

2U rack server

Processors

Up to 2x 3rd generation Intel Xeon Scalable processors, up to 40 cores, up to 270W TDP

Drive Bays

Up to 20x 3.5-inch or 40x 2.5-inch drives

Up to 32x NVMe drives supported with NVMe switch adapters

2x M.2 boot drives (RAID 1)

2x 7mm boot drives in rear (RAID 1)

Memory

32x DDR4 memory slots

Maximum 4TB using 32x 128GB 3DS RDIMMs

Supports up to 16x Intel Optane Persistent Memory 200 Series modules (PMem)

Expansion Slots

Up to 8x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot

GPUs

Up to 8x single-width GPUs or 3x double-width GPUs

Network Interface

LOM adapter installed in the OCP 3.0 slot; PCIe adapters

Ports

Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port

Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional)

HBA/RAID Support

SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs

Power

Dual redundant power supplies (up to 1800W Platinum)

Systems Management

Lenovo XClarity Controller
