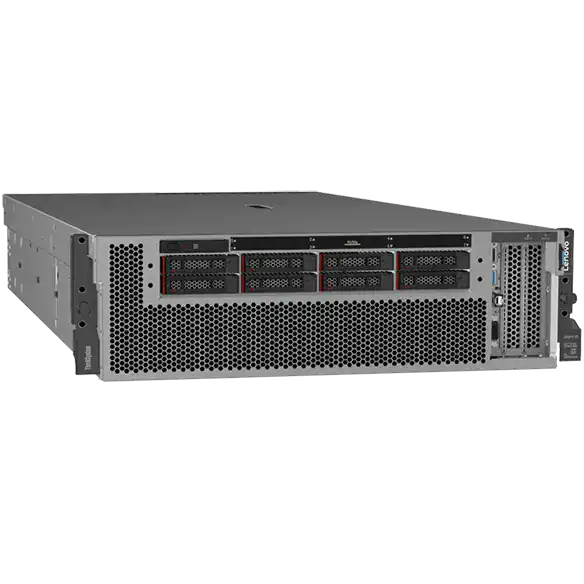

Lenovo ThinkSystem SR670 V2 Rack Server

Lenovo ThinkSystem SR670 V2 delivers optimal performance for Artificial Intelligence (AI), High Performance Computing (HPC) and graphical workloads across an array of industries.

Lenovo ThinkSystem SR670 V2 Rack Server Technical Specifications

Processor

       2x 3rd Gen Intel Xeon Scalable processors per node

Memory

       Up to 2.0TB using 32x 64GB 3200MHz TruDDR4 3DS RDIMMs per node.

       Intel Optane Persistent Memory 200 Series

Base Module

       Up to 4x double-wide, full-height, full-length FHFL GPUs each PCIe Gen4 x16

       Up to 8x 2.5” Hot Swap SAS/SATA/NVMe, or 4x 3.5” Hot Swap SATA (selected    configurations)

Dense Module

       Up to 8x double-wide, full-height, full-length GPUs each PCIe Gen4 x16 on PCIe switch

       Up to 6x EDSFF E.1S NVMe SSDs

HGX Module

       NVIDIA HGX A100 4-GPU with 4x NVLink connected SXM4 GPUs

       Up to 8x 2.5” Hot Swap NVMe SSDs

RAID Support

       SW RAID standard; Intel Virtual RAID on CPU (VROC), HBA or HW RAID with flash cache        options

I/O Expansion

       Up to 4x PCIe Gen4 x16 adapters (2 front or 2-4 rear) and 1x PCIe Gen4 x16 OCP 3.0     mezz adapter (rear) depending on the configuration

Power and Cooling

       Four N+N redundant hot-swap PSUs (up to 2400W Platinum)

       Full ASHRAE A2 support with internal fans and Lenovo Neptune liquid-to-air hybrid      cooling on HGX A100

Management

       Lenovo XClarity Controller (XCC) and Lenovo Intelligent Computing Orchestration (LiCO)

Form Factor

      3U Rack Server
